UC501 and RS232

Tim

started a topic 3 days ago

I have a RS232 sensor connected to the UC501. When connected to power it works perfectly sends payload data and status. When I disconnect power and have it run on Solar /battery it only sends status it doesnt send payload. Battery is at 100%. I have my sensor in a demo mode it is sending data over the RS232 every 25secs or so

1 Comment

Charles Luo

said 2 days ago

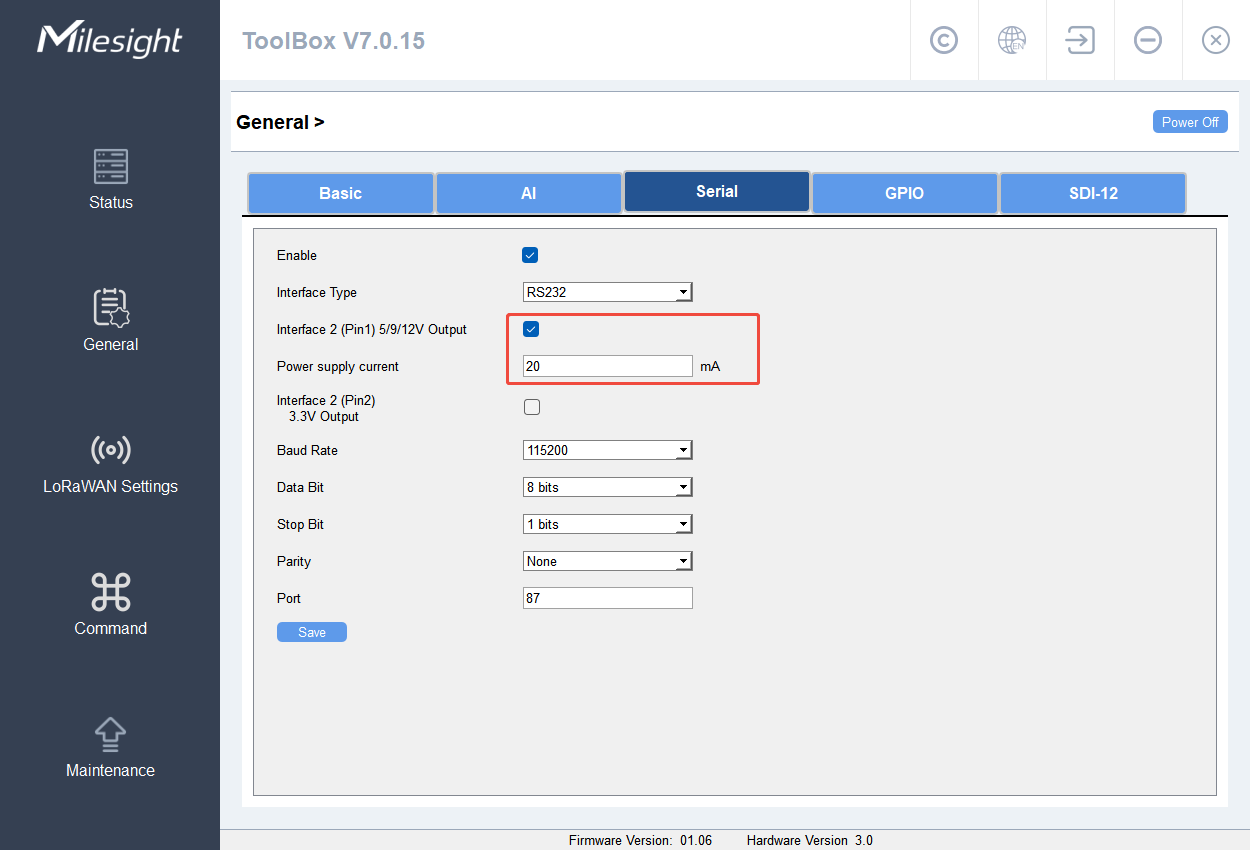

According to your description, this issue seems to be related to the power supply of the RS232 device. If your RS232 device previously worked properly by being powered through the interface of the Milesight UC501, please try using an external power supply with the same voltage and current settings as configured in the ToolBox App(as shown below) to power your RS232 device when the UC502 is powered only by solar or battery, and then observe whether this resolves the issue.
